b maXX 2400 Small servo controller up to 2kW

The b maXX 2400, in combination with the servo motors DSD2 28–36 and the disc motors from Baumüller forms a powerful compact system for industrial applications such as handling, packaging and robotics as well as for mobile applications for warehousing and logistics.

The mini servo inverter with integrated intelligence supports the field buses CANopen, EtherCAT, PROFIBUS and Modbus and can thus be flexibly integrated into networked drive structures.

Servo controller b maXX 2400

Features

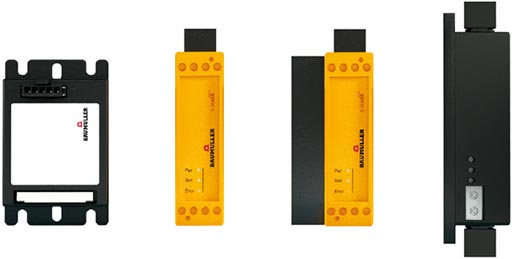

bm1000 sizes

  • Compact servo inverter with integrated MPU (Motion Process Unit)
  • Support of the fieldbus systems CANopen, EtherCAT, PROFIBUS, Modbus
  • Applicable for drive systems with supply voltage 9 to 60 VDC
  • Suitable for use with BLDC and DC motors with closed-loop control and for DC motors in speed control mode with open-loop control
  • The servo controller is freely programmable
  • Optional operating modes include: Positioning control, 4Q-speed controller or current controller
  • Positioning controller (sampling time 2000μs), speed controller (sampling time 250μs), current controller (sampling time 125μs)
  • Protection functions: over voltage, under voltage and over temperature monitoring
  • LED-display for Power, Status, Error
  • The controllers have digital inputs and outputs and at least one analogue input
  • The integrated MPU is freely programmable up to 1500 lines in Python script
  • The programming of the inputs and outputs in the MPU enable following functionalities: SPS, brake control, analogue setpoint value, selectable reference travel modes
  • All connections are plug-in
  • Options: CAN-adapter USB for parameterization and programming, external ballast module with integrated ballast resistor
  • Possibility of remote diagnosis
