AC digital units

Rapid replacement if needed

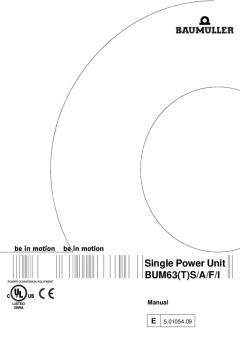

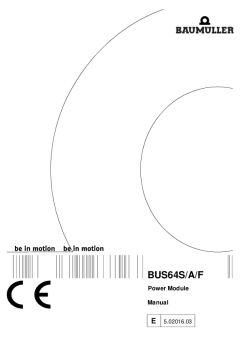

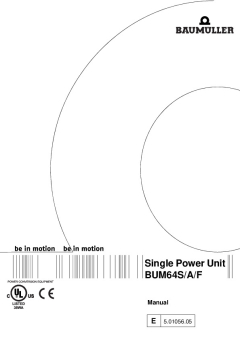

The single power units BUM 60, 61, 62, 63, 64 consist of the grid-side feed-in converter and the motor-side inverter. The BUS 60, 61, 62, 63, 64 power modules only contain the inverter on the motor side. The power is supplied via the DC link connections.

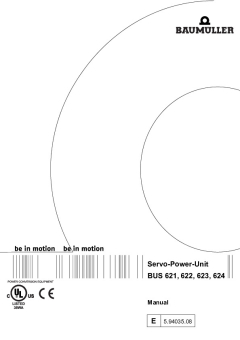

BUC 624 and BUC 625 power feed/feedback units are line-side power converters for feeding the DC link of the BUS 62x power modules.

BUG 622 and BUG 623 basic power feed units are line-side power converters for feeding the DC link of BUS 62x power modules.

By using the capacitor unit BUK 622 it may be possible to replace a ballast unit which normally converts the regenerated energy into heat. Furthermore, it is used wherever the DC link voltage must be maintained in the event of a short-term power failure.

BUB 622 is a ballast unit specially designed for operation with BUM 62, 63, 64 inverters.

AC units digital

Features

  • Single power units/power modules BUM/BUS 60, 61 for mid-power applications
  • Single power units/power modules BUM/BUS 62, 63, 64 for high-power applications
  • Rectifier and regenerative feedback units BUC are available in two power ranges 18kW and 36kW.
  • Basic feed units BUG for two power ranges 18kW and 36kW
  • Capacitor unit BUK 622
  • Ballast unit BUB 622 for the converters BUM 62, 63, 64
