b maXX 4400 modular servo controllers

The b maXX 4000 converter family is available with five cooling variants and seven sizes. The b maXX 4400 has up to eleven slots for plug-in modules and can therefore be customized for special automation tasks. Special plug-in modules connect the b maXX 4000, for example, to all common bus systems. The plug-in module b maXX-drivePLC makes the drive intelligent.
b maXX 4400 offers a power range from 1.1 to 315kW. Rectifiers, intermediate circuit capacities and inverters are integrated in all devices.

Features

Braking energy

The control of a brake resistor is integrated in the device as a brake chopper. A ballast resistor is connected externally. On the one hand, this ensures optimum dimensioning and, on the other, reduces the construction volume of the control cabinet.

Mains filters

To ensure a cost-effective configuration, mains filters are always connected externally upstream of the device. This way, several power modules can be combined on one mains filter, which reduces the costs for the entire system.

Temperature-dependent fan control

The fan is open-loop controlled as a function of the internal temperature of the device. This lowers the overall energy balance, thus reducing the overall costs of a system.

DC link coupling

A DC link coupling of several power modules for energy compensation is possible. The excess energy is not “burned up”, but is available to other drive units without additional energy being absorbed from the power supply.

Safety module

With the help of the optional safety module, “STO” functionality acc. to EN ISO 13849 up to PLe/SIL3 can be easily realized without integrating additional contactors within the motor cable.

Types of cooling

The modular servo controller are available with standard cooling air/water, push-through technology air/water and coldplate.

Function and option modules for b maXX 4400

With over 30 different function and option modules, b maXX can be easily adapted to the individual tasks of the automation and drive solution. The individual modules are designed as plug-in cards, so the drive controller no longer needs to be ordered pre-assembled. The machine builder can use various plug-in cards, function and option modules for b maXX 4400 to ensure a wide range of functions and plug in the required combinations himself. This way he can react quickly and flexibly to new requirements. In addition, this system guarantees quick extension of the drive at the user's premises. Production adjustments can be made in a short time and with a small extent of work.

Technical data b maXX 4400

Features

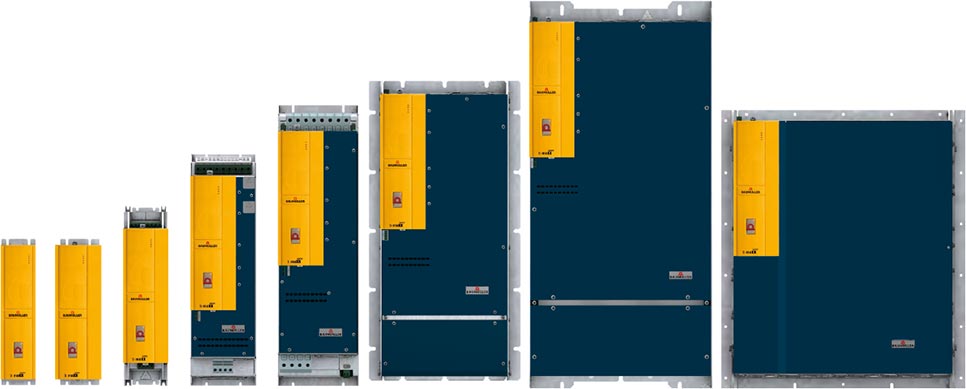

b maXX 4400 Baugrößen

The b maXX 4400 converter family offers a power range from 1.1 to 315kW. Rectifiers, intermediate circuit capacities and inverters are integrated in all devices.

Fieldbus systems: EtherCAT, Ethernet Powerlink, CANopen, Varan, Sercos, EthernetIP, Profibus, CANsync

Cooling methods: Standard cooling air/water, push-through technology air/water, coldplate

Expansions: b maXX 4400 has up to eleven slots for plug-in modules and offers space for digital and analog I/Os, encoder interfaces, b maXX-drivePLC, fieldbus cards and memory modules
