Highly efficient, easy to operate frequency converter
In the power range from 0.2 to 11 kW, the b maXX 1000 frequency converter controls vector-controlled standard motors in three power ratings with high efficiency.
Baumüller has logically designed the b maXX 1000 for ease of use and integrated a standard EMC filter to comply with the current EU standard (EN 55011A / Second environment). Numerous protection and overload functions, such as phase failure detection on the power supply and motor, ensure trouble-free operation. Extensive control and data management continuously provide an accurate overview of the current drive status.
With 15 different preset speeds, the b maXX 1000 is suitable for a wide range of applications. It is can also be made whisper quiet in operation thanks to adjustable pulse width modulation from 1 to 15 kHz and a rotating field frequency range of 0.1 to 400 Hz. This allows even multi-pole machines to be operated in a high speed range. The b maXX 1000 offers connectivity to the leading open fieldbus system, CANopen, and is able to work as a motion control slave via its integrated protocols.
Frequency converter b maXX 1000
Features
- integrated standard EMC filter to comply with the current EU standard (EN 55011A / Second environment)
- numerous protection and overload functions
- extensive control and data management
- 15 different preset speeds
- adjustable pulse width modulation from 1 to 15kHz
- rotating field frequency range of 0.1 to 400Hz
- field bus system CANopen
- configurable as Motion Control slave
Technical data

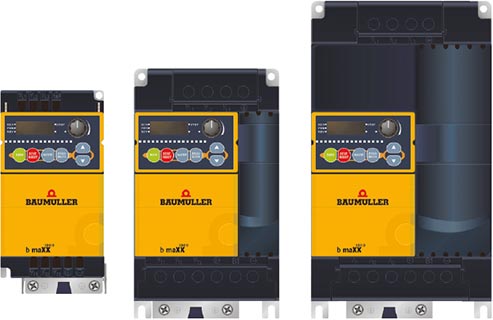

Frame size | IN [A] | IMAX [A] | typ. motor rating [kW] | Overload factor 3) | Dimensions WxHxD 4) [mm] | |
---|---|---|---|---|---|---|
BM 1211 1) | 1 | 1.6 | 2.4 | 0.2 | 1.5 | 72 x 142 x 152 |
BM 1212 1) | 1 | 2.5 | 3.75 | 0.4 | 1.5 | 72 x 142 x 152 |
BM 1213 1) | 1 | 4.2 | 6.3 | 0.75 | 1.5 | 72 x 142 x 152 |
BM 1224 1) | 2 | 7.5 | 11.25 | 1.5 | 1.5 | 100 x 174 x 152 |
BM 1225 1) | 2 | 11.0 | 16.5 | 2.2 | 1.5 | 100 x 174 x 152 |
BM 1412 2) | 1 | 1.5 | 2.25 | 0.4 | 1.5 | 72 x 142 x 152 |
BM 1413 2) | 1 | 2.5 | 3.75 | 0.75 | 1.5 | 72 x 142 x 152 |
BM 1414 2) | 1 | 4.2 | 6.3 | 1.5 | 1.5 | 72 x 142 x 152 |
BM 1425 2) | 2 | 5.5 | 8.25 | 2.2 | 1.5 | 100 x 174 x 152 |
BM 1426 2) | 2 | 8.2 | 12.3 | 3.7 | 1.5 | 100 x 174 x 152 |
BM 1437 2) | 3 | 13.0 | 19.5 | 5.5 | 1.5 | 130 x 260 x 169 |
BM 1438 2) | 3 | 18.0 | 27.0 | 7.5 | 1.5 | 130 x 260 x 169 |
BM 1439 2) | 3 | 24.0 | 36.0 | 11 | 1.5 | 130 x 260 x 169 |
